I scream, you scream, we all scream for ice cream! Ice cream is something we all know and love, but the time and energy it takes to scoop ice cream out of the carton can sometimes be frustrating. Prior to the invention of the ice cream scoop in 1897 by Alfred L. Craelle, spoons were used to scoop ice cream. Through the 20th and 21st centuries ice cream scoops continued to evolve (see patent chart below). Refrigeration and electricity brought ice cream into people’s homes, widening the market beyond parlors and restaurants to everyday consumers. Manufacturers began to differentiate their scoops from one another by adding heating elements, mold shapes, and trigger mechanisms. Despite these advancements, current ice cream scoop designs are still not meeting the needs of consumers. Instead, consumers are “hacking” scoops to compensate for the shortcomings of designers and manufacturers. It's time to make ice cream easier to scoop.
Insight

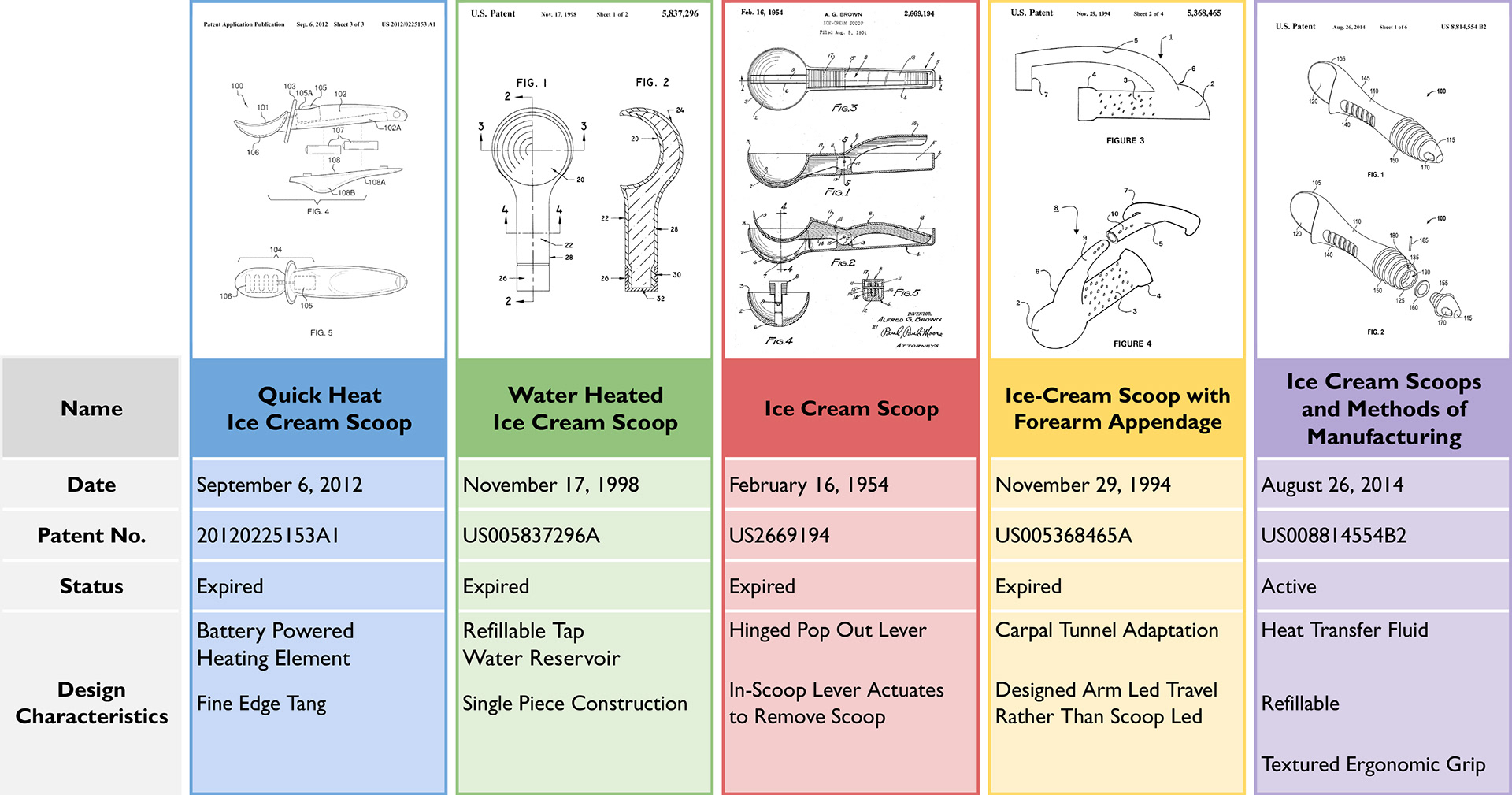

Major Ice Cream Scoop Patents from the 20th & 21st Century
Consumer Base
The first step in identifying user needs and obstacles was to conduct a questionnaire with target users between the ages of 50-60 years old. The survey results illustrated that:
• People of all age demographics complained of fatigue in the wrist, palm, and hand.
• People between the ages of 50-60 years old complained of forearm fatigue and stated arm strength was a limiting factor for them.
Regardless of age people have found alternate solutions to make scooping easier, including:
• Storing the carton in a freezer bag
• Letting the carton sit out for 3 minutes
• Placing the ice cream carton in the microwave for 30 secs
• Cutting a grid into the ice cream with a knife
• Warming the scoop under running water
• Pressing in a thumb indentation into the ice cream
• Scooping in an s-pattern
Surveyors stressed that current designs take too much time to use, are cumbersome and uncomfortable. They all would consider purchasing an improved ice cream scoop.

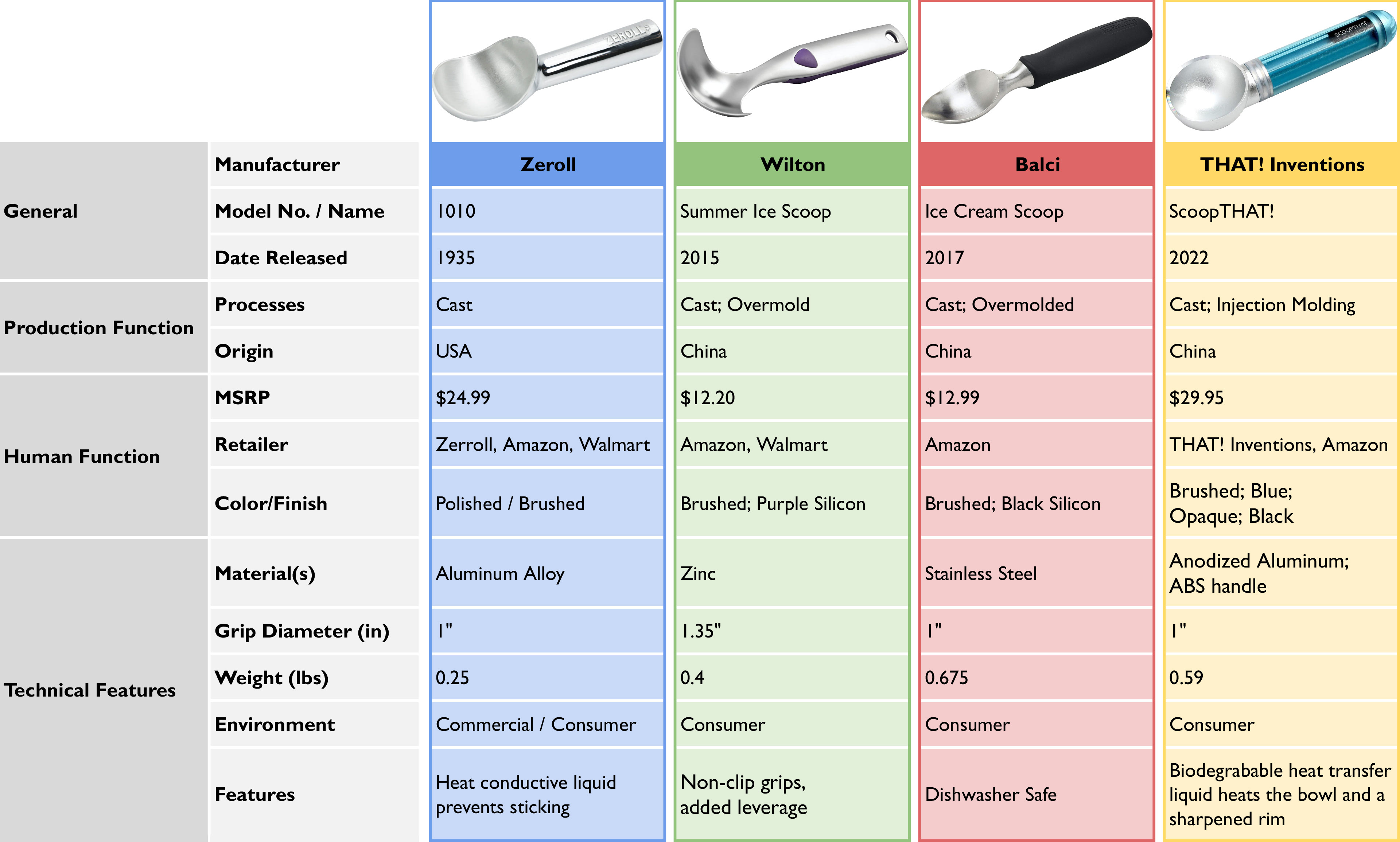

Product Analysis - Efficiency Testing
In order to accurately compare the efficiency of the following ice cream scoops, a testing apparatus was built to replicate a scoop being passed through a carton of ice cream. The experiment procedure stabilized variables like temperature, time out of the freezer, and the force applied to each scoop during testing.

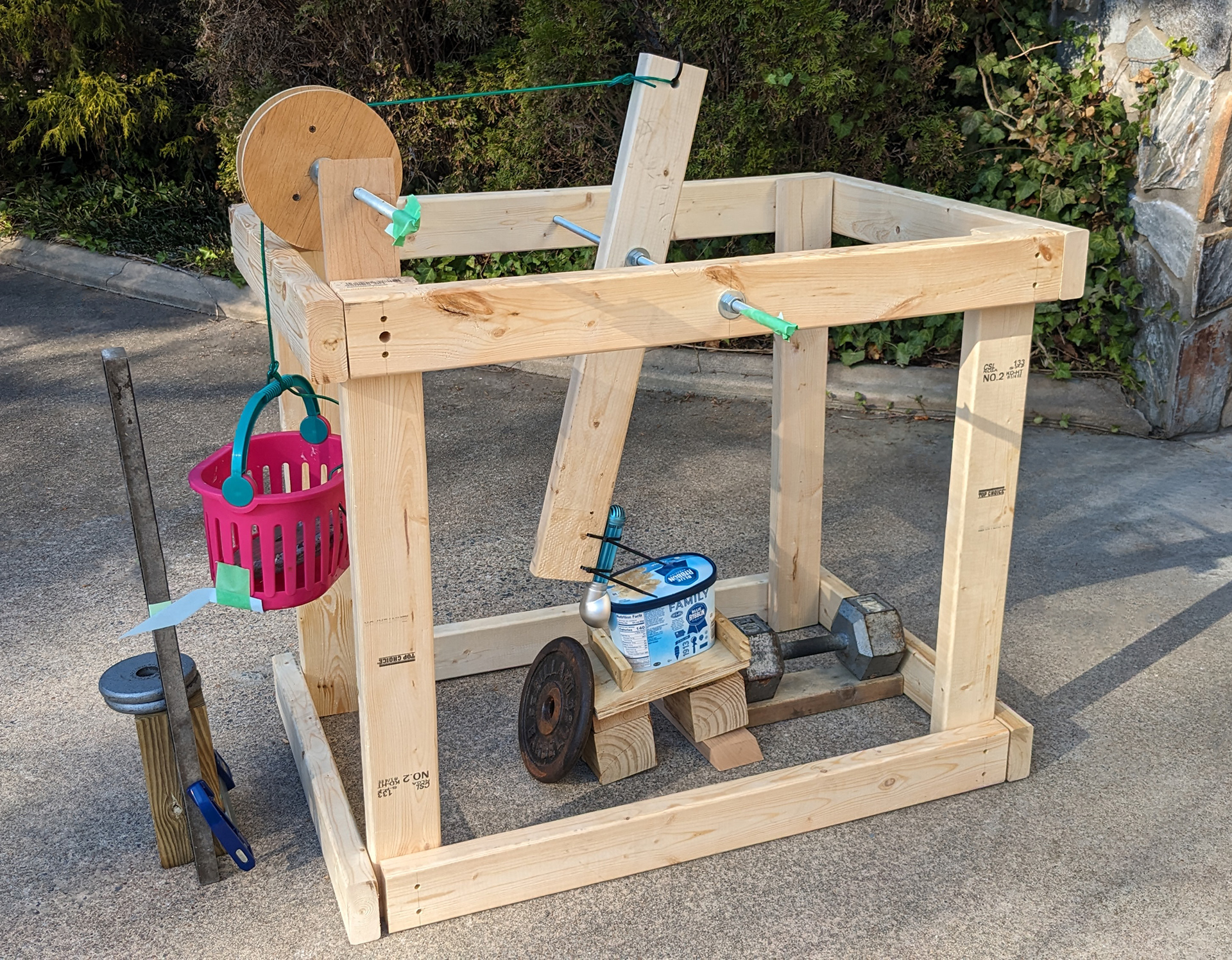

Testing Apparatus

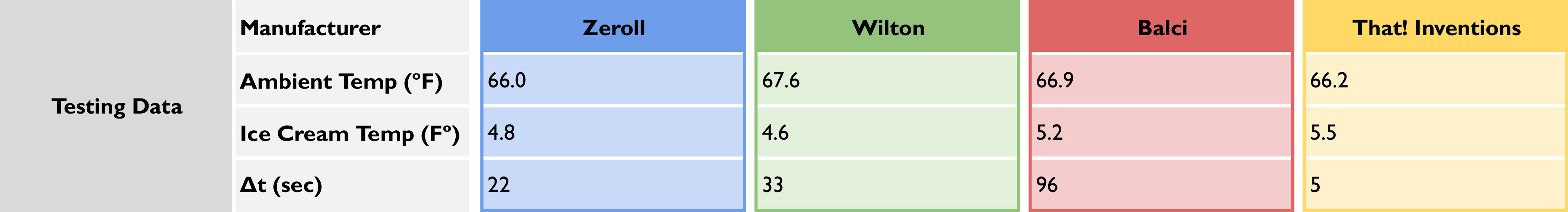

Temperatures of the room and the ice cream were recorded to prove a minimal heat fluctuation between tests.
The experiment recorded the amount of time it took for a weighted basket to travel a specified distance (d) depending on which scoop was traveling through a fresh carton of ice cream.
The test results showed, ScoopTHAT!, a scoop with a single beveled edge and oil insulated handle cut through the ice cream and out performed the scoops with a rounded edge as shown by the change in time (Δt).
Product Analysis - User Testing
To support the mathematical conclusions from the efficiency testing, the same ice cream scoops were handed out to users to observe which design features were the most ergonomic and user-friendly. The following conclusions were made:
• An ergonomic grip forced people to conform to a single grip style and did not facilitate variability in grip styles.
• A rounded grip offered versatility in designs and grip styles.
• Scoop shapes that could be used at different angles also facilitated versatility in designs.
Market Opportunity
Research illustrated that there is not an ice cream scoop currently on the market that suitably considers the consumers’ need for a scoop that is comfortable, prevents muscle and joint fatigue, and accommodates an array of scoop and grip styles and strengths. The ideal scoop must:
• Have a grip that allows anyone to intuitively hold the scoop comfortably regardless of their physical condition.
• Integrate a system to eliminate ice cream sticking to the scoop.
• Employ a feature which raises the kinetic energy efficiency of the scoop to allow people with diminished arm strength to comfortably use it.
Exploration
Design Characteristics
1. A sharpened scoop edge to focus the user’s force efficiently in the ice cream.
2. A grip that is non-angular to allow a smaller degree of bend in the interphalangeal and metacarpophalangeal joints.
3. Heating that can be drawn from the user’s body heat to prevent sticking.
4. A part that’s function is to absorb thermal energy and release it slowly in order to heat the scoop bowl and eliminate sticking.

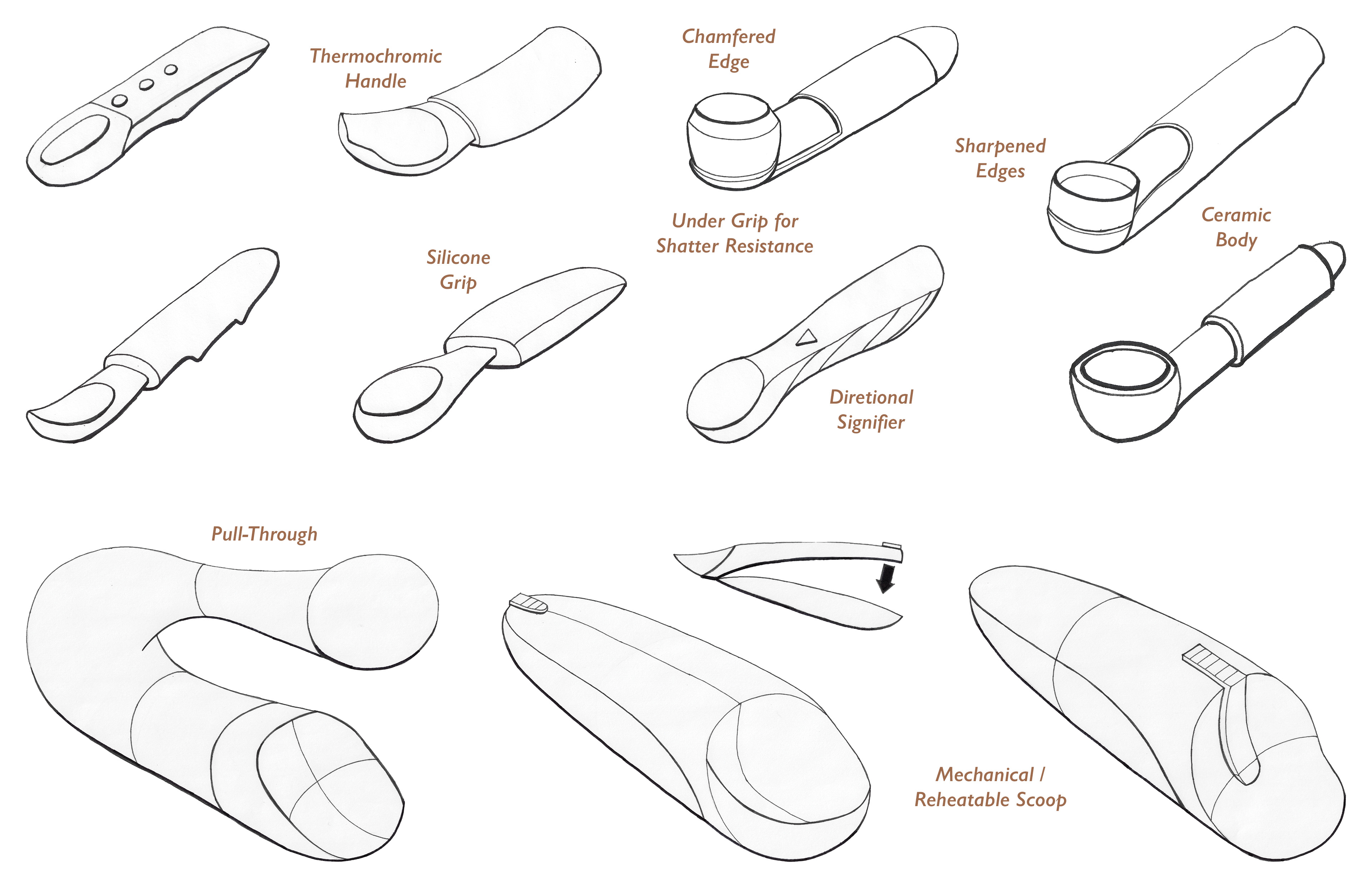

Initial Concepts
Concept Development

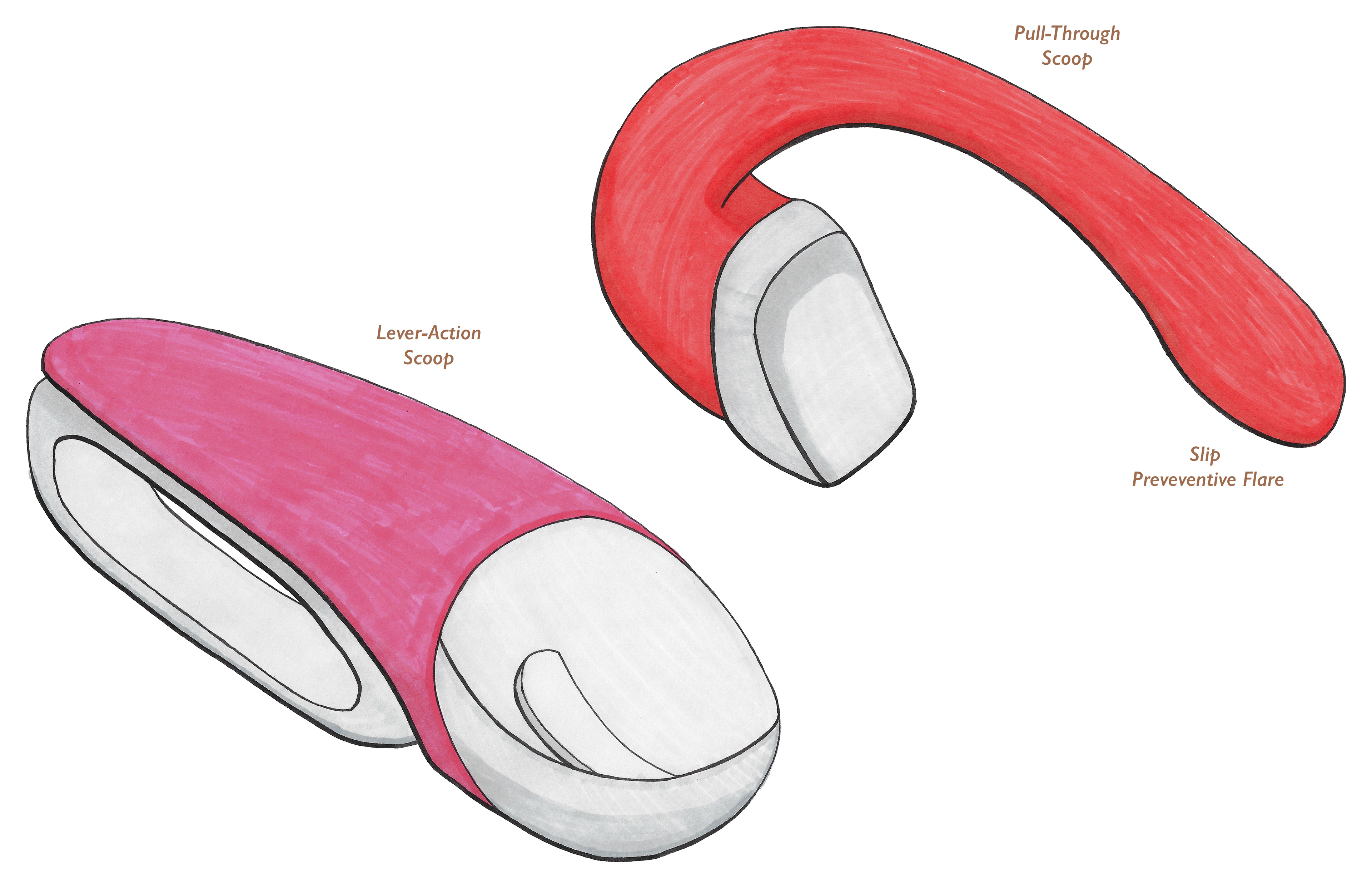

While the lever-action traditional grip ice cream scoop was simple and intuitive, it posed problems with cleaning and wear on the non-lubricated steel mechanism which could lead to rusting of the steel parts.
The pull-through design was inspired by agricultural moldboard plows. While it was simpler in its sequence of use and eliminated any moving parts, variations in grip styles would not be accommodated and reaching into a carton of ice cream would be very difficult.

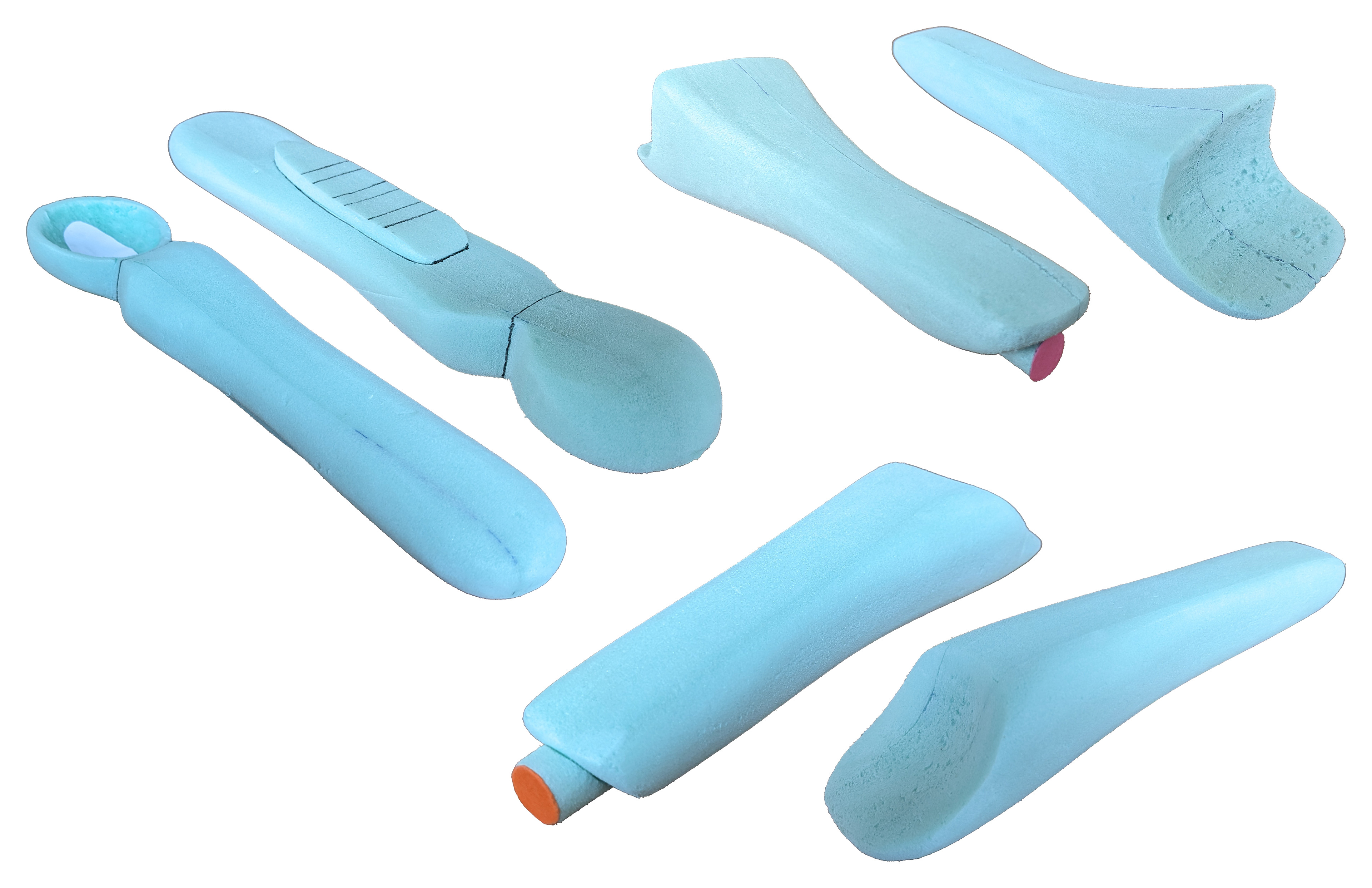

Sketch Models
The sketch models illustrate that a mechanical solution does solve the sticking problem, but it presents a series of further issues. Seams and cracks necessary for function create hard to clean areas and cavities. Mechanisms are susceptible to melted ice cream entering the housing. Ice Cream Salt can lead to rusting and deterioration of the mechanism if left uncleaned.
On the other hand, the thermal solutions can consist of uni-body design that allows for easy cleaning and cleaner aesthetics. Thermal heat conductivity can be drawn from the hand and from a reheatable thermal battery for expanded thermal energy capacity. Color-Changing interface operates as a signifier to the user's efficient operation. Bare ceramic as a thermal battery poses burn risk to users. Lastly, scoop shape doesn’t lend itself to ice cream spheres.
Refined Concept

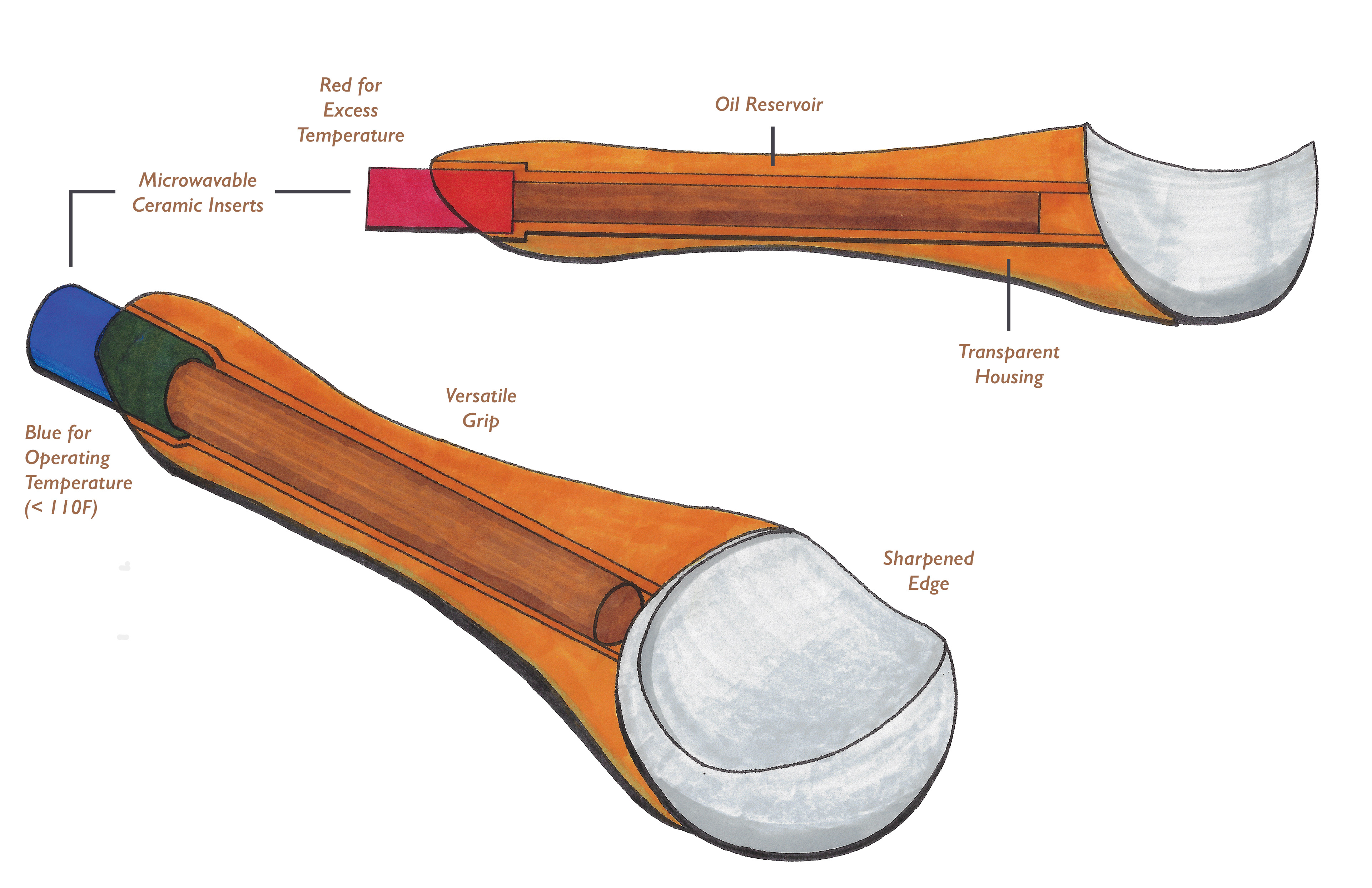

The final hand-drawn concept retains the versatile grip from the sketch models with a modification to the scoop and a microwavable ceramic insert to add heat, in addition to the user’s hand, into the scoop and oil reservoir.
Solution

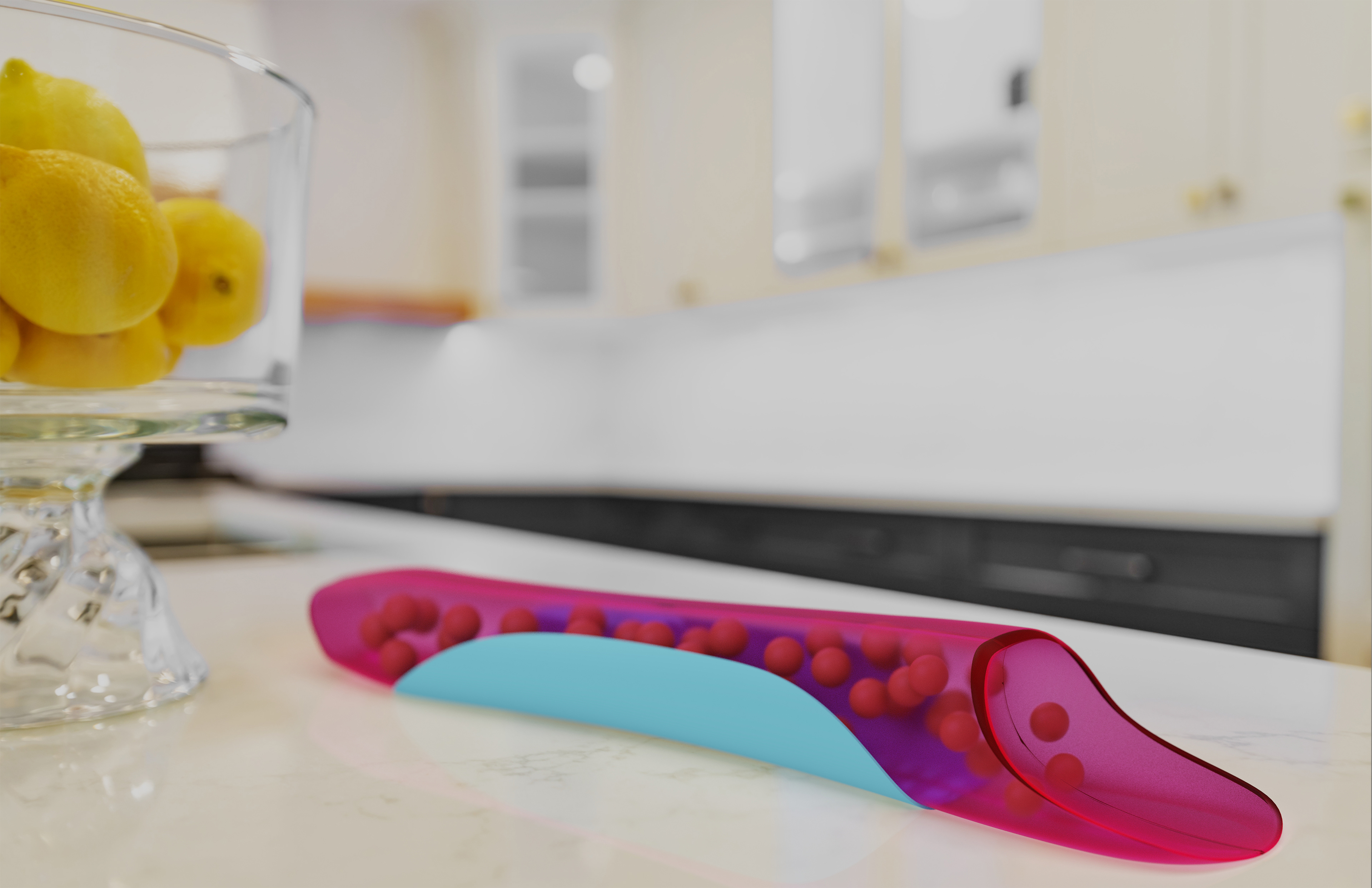

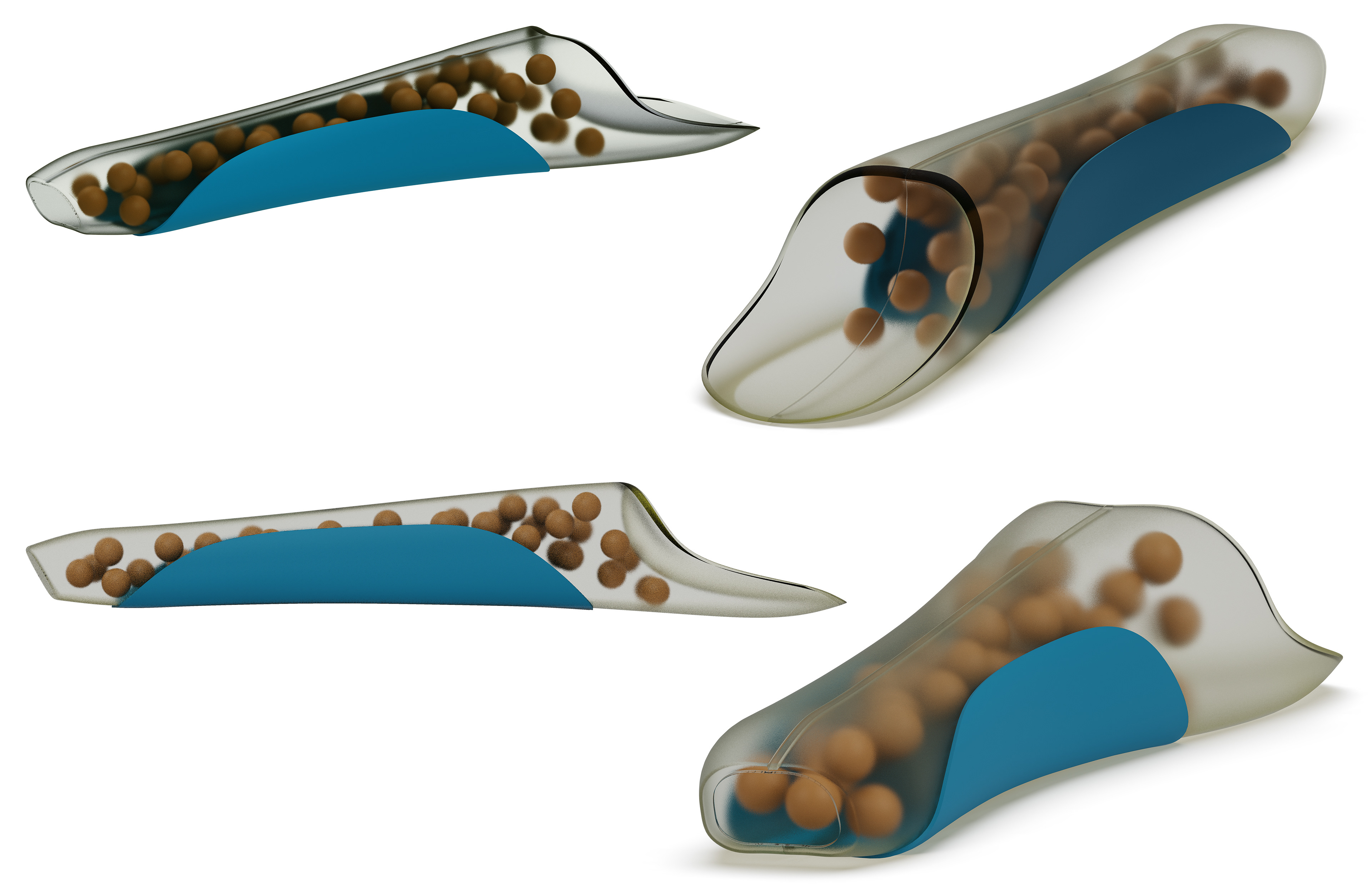

Using kinetic efficiency and thermal conduction, Flurry is designed to prevent fatigue in the wrist and forearm caused by scooping ice cream. Ice cream is known to treat stress, anxiety, and depression so why have it if scooping is just going to contribute to your stress anyway?
Flurry uses food grade mineral oil and ceramic spheres to conduct and circulate heat within Flurry’s transparent Lexan body. Flurry’s silicon grip is designed specifically to accommodate multiple grip styles and accommodate all people including the young and those of us who are young at heart.
Ergonomics

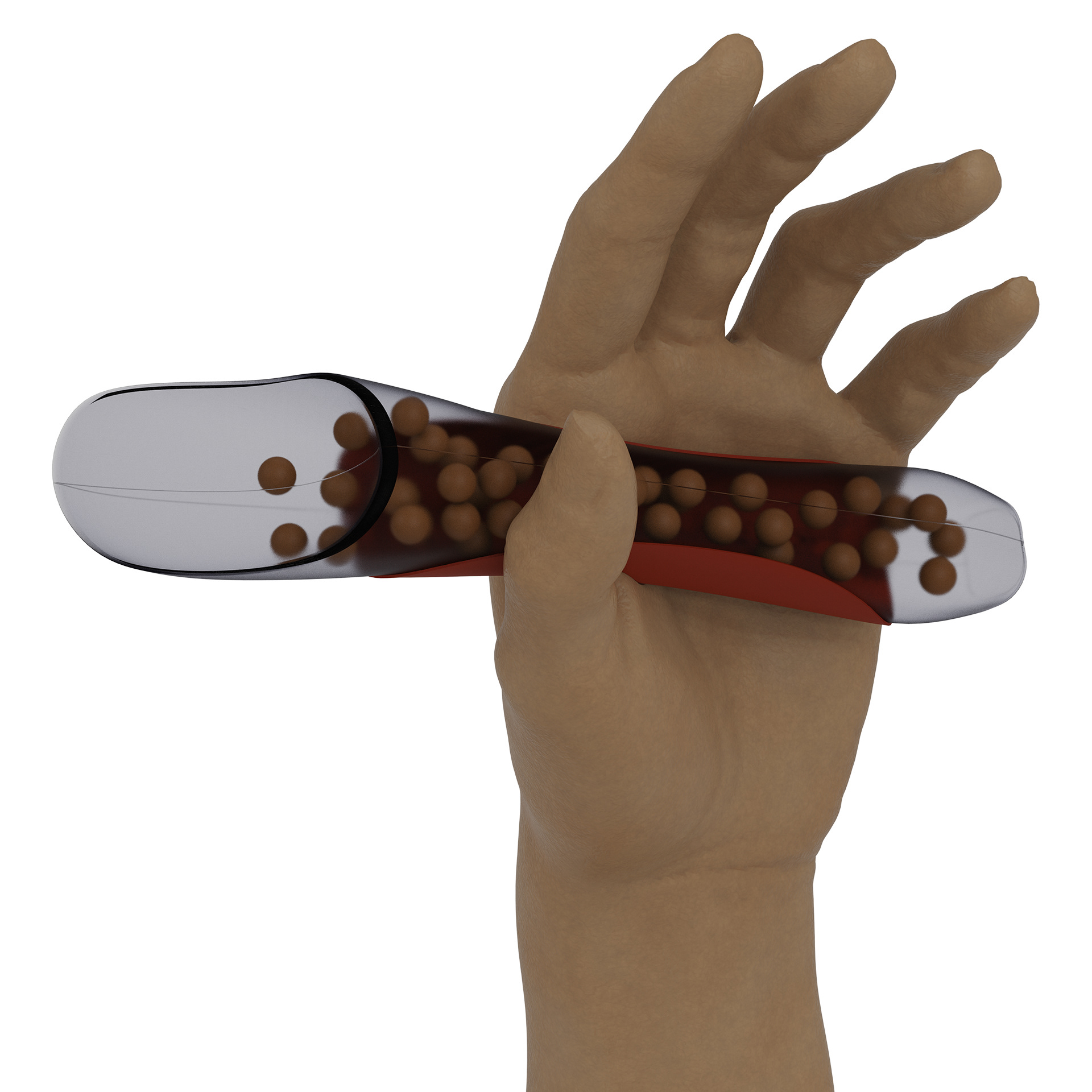

Flurry’s grip accommodates multiple grip styles and strengths by staying simple and universal in its design. The grip leaves the top most area of Lexan exposed to absorb palm heat easily.
“Shake, Rattle, and Roll”
First the users shakes the spheres to circulate the oil and listens for the rattle before rolling the ice cream into the scoop. If the ice cream begins to stick, people can simply repeat this process to recirculate the heat stored within the oil and the spheres. The inside of the scoop has full coverage within the oil reservoir, and a sharp edge profile to ease scooping and prevent sticking.

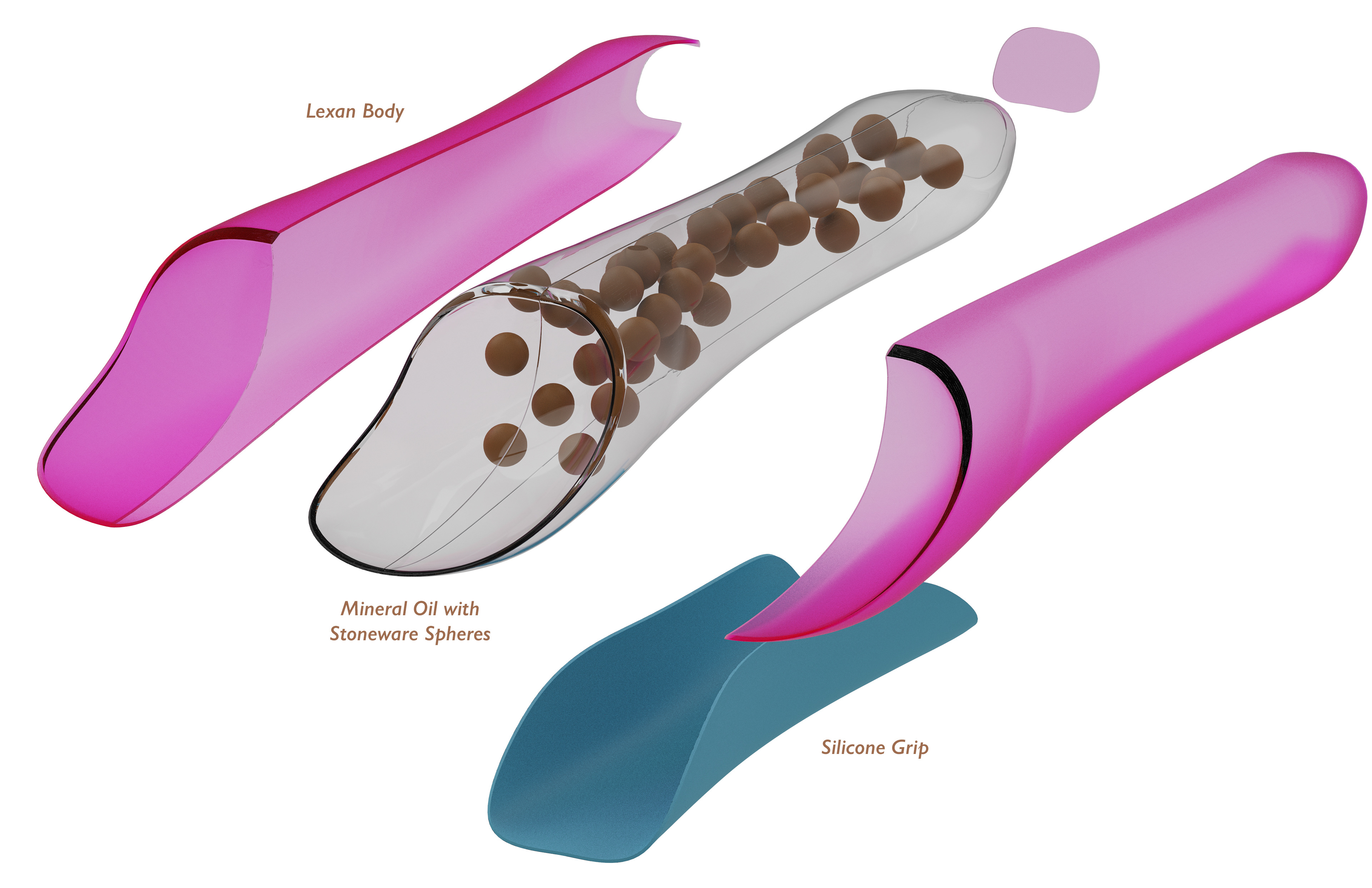

Assembly
Flurry is assembled by first combining two sides of the body mold which are then ultrasonically welded. Afterwards the body is filled with 13 cubic inches of food grade mineral oil and 39 1/4 inch stoneware spheres. Finally a Lexan cap is ultrasonically welded on to seal the thermal mediums and the silicone grip is over-molded onto the body.
Colorways

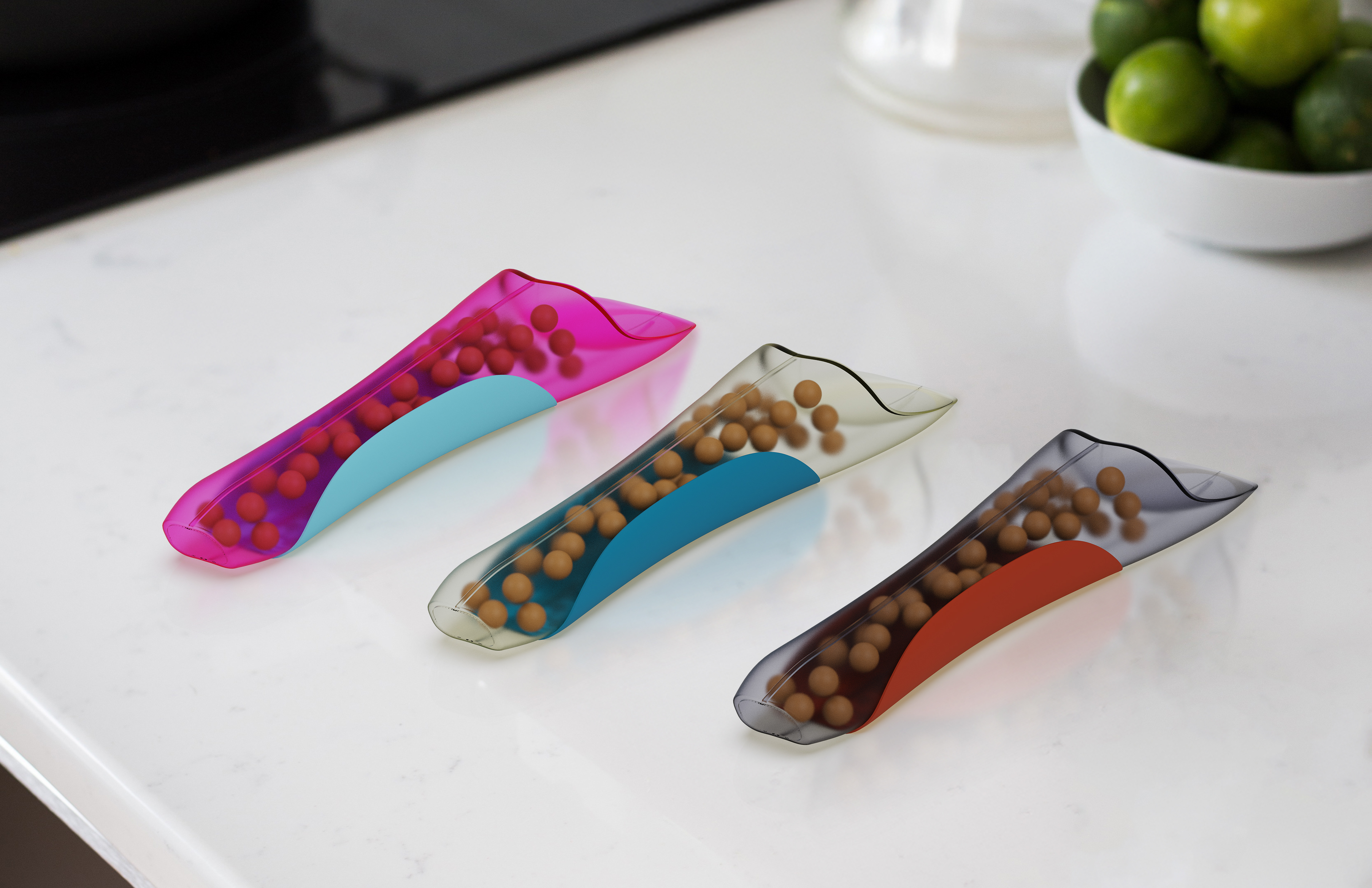

Flurry comes in a variety of body and grip colors for those who prefer a range of color palettes from the more exuberant to the more subdued.
Credits: Ethan Merklein and Julia Petrušová
